NCEA Level 3 AS91578

Differentiation · 2019 · Q3(e)

2019 Paper

Back to paper

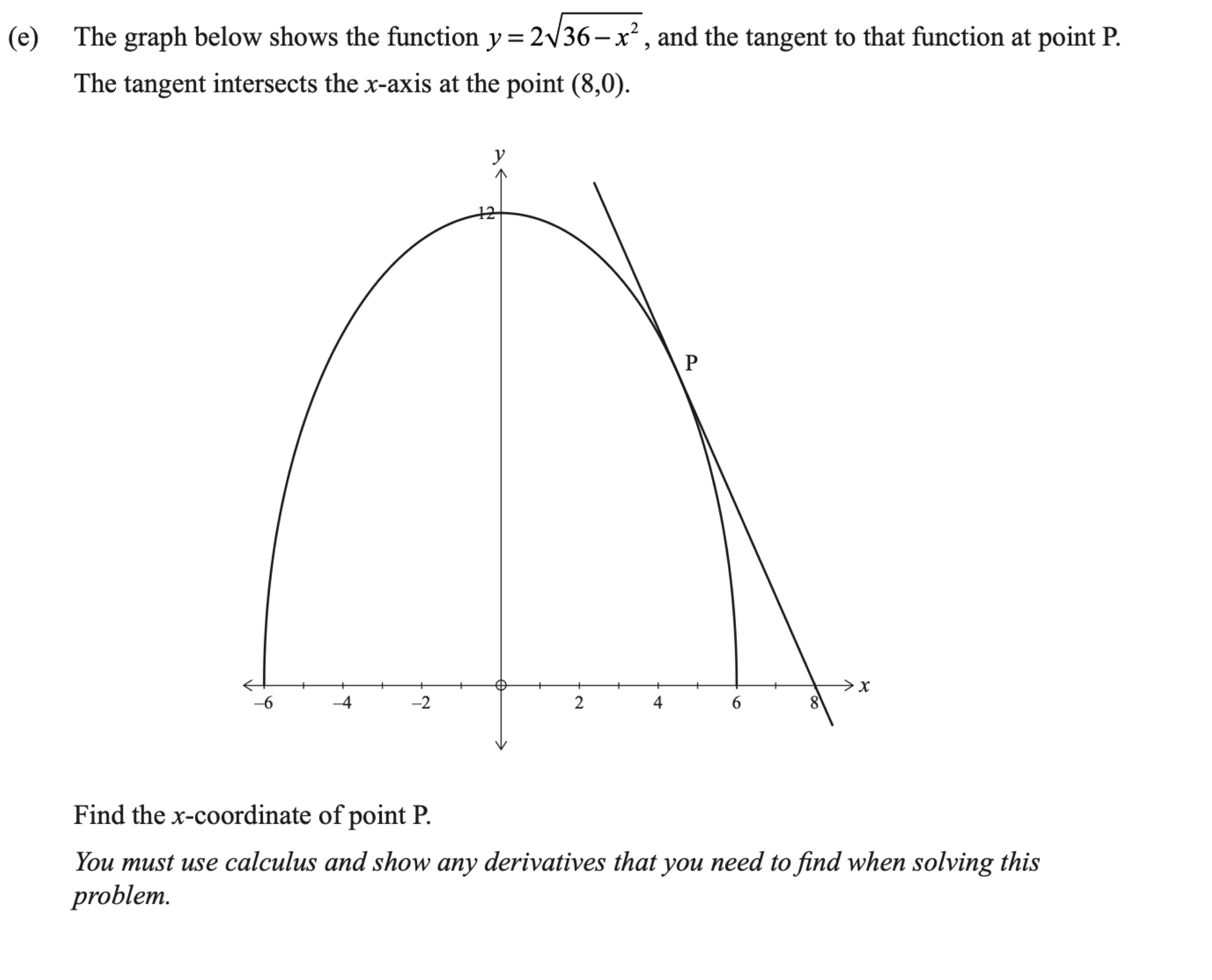

The graph shows \(y=2\sqrt{36-x^2}\) and its tangent at P. The tangent intersects the \(x\)-axis at \((8,0)\). Find the \(x\)-coordinate of P.

xyP812

You must use calculus and show any derivatives that you need to find when solving this problem.

Original question scanOriginal scan of the question transcribed above
Hint

First walkthrough idea

Focus to try first

Use the tangent gradient on \(y=2\sqrt{36-x^2}\) to find point \(P\).

First worked step

Step 1

Differentiate the curve

Use the chain rule on \(y=2(36-x^2)^{1/2}\).

Show the first step’s working
\[ \frac{dy}{dx} = \frac{2}{2}(36-x^2)^{-\frac{1}{2}}\times -2x \] \[ = \frac{-2x}{\sqrt{36-x^2}} \]

Walkthrough overview

What this question practises

This 2019 walkthrough is part of AS91578 — Apply differentiation methods in solving problems.

Method: Using a tangent intercept to find the coordinate of \(P\).

This is Question 3(e) from the 2019 NCEA Level 3 Differentiation paper for AS91578 — Apply differentiation methods in solving problems. Attempt the question independently, then use hints and worked steps to compare your reasoning.
