NCEA Level 3 AS91578
Differentiation · 2023 · Q3(b)
2023 Paper

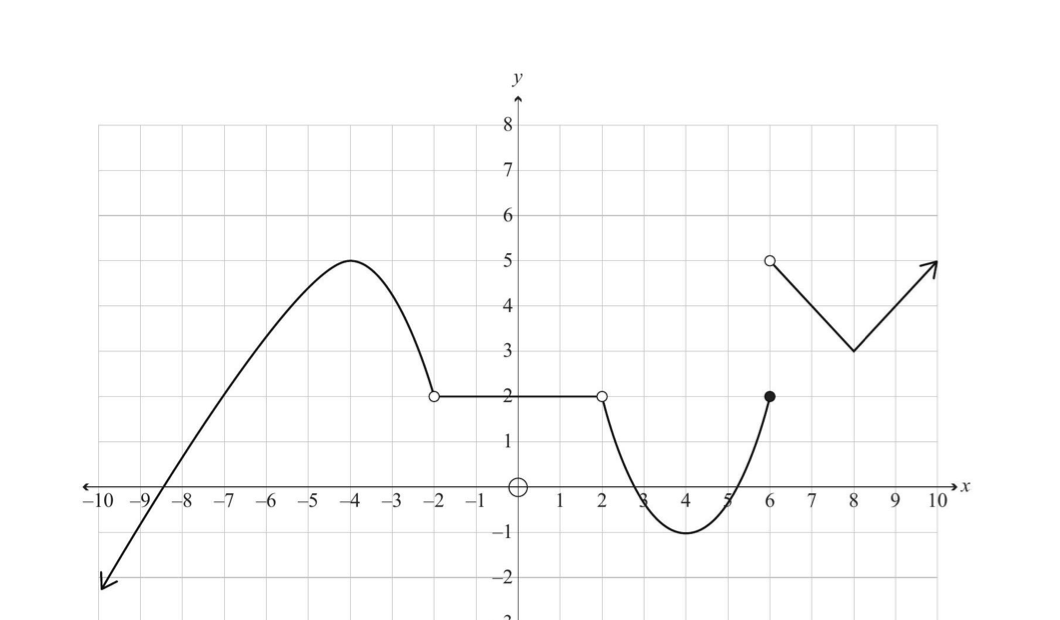

The graph below shows the function \(y=f(x)\).
- Find the value(s) of \(x\) where \(f(x)\) is continuous but not differentiable.
- Find the value(s) of \(x\) where \(f'(x)=0\) and \(f''(x)\lt 0\) are both true.
- What is the value of \(\lim_{x\to 6}f(x)\)?
Hint
First walkthrough idea
Hint to try first
Continuous but not differentiable means the graph is joined up but has a sharp corner.
First worked step
Step 1
Find the continuous corner
Where does the graph join without a break but have a sharp corner?
Show the first step’s working
The graph meets at \(x=8\), but it does so with a sharp corner.
Key result
\[ x=8 \]Walkthrough overview
What this question practises
This 2023 walkthrough is part of AS91578 — Apply differentiation methods in solving problems.
Method: Reading continuity, concavity, and limits from a graph.
This is Question 3(b) from the 2023 NCEA Level 3 Differentiation paper for AS91578 — Apply differentiation methods in solving problems. Attempt the question independently, then use hints and worked steps to compare your reasoning.
Calc.nz is an independent learning resource. Compare questions, diagrams, and assessment information with the official NZQA resources for AS91578.
Page updated .
Check
Distinguish the plotted function value from its limit and gradient. Open circles, jumps and corners affect these questions in different ways.
More practice and reflection
This walkthrough helps you practise reading continuity, concavity, and limits from a graph. Use the hints to plan the method, then repeat the question without hints and check each step.
