NCEA Level 3 AS91578
Differentiation · 2019 · Q3(b)
2019 Paper
The graph shows \(y=f(x)\).
(i) Find all values of \(x\) for which: 1. \(f^\prime(x)=0\); 2. \(f(x)\) is not differentiable.
(ii) What is \(\lim_{x\to1}f(x)\)? State clearly if the value does not exist.
Graph description
Graph description: a straight ray descends through (−5,6) to (−2,0); a straight segment rises to an open circle at (1,3). A separate curve begins at a filled point (1,4), rises smoothly to (2,5), then falls to (4,1). From (4,1) a horizontal ray continues to the right. The joins at (−2,0) and (4,1) are corners.

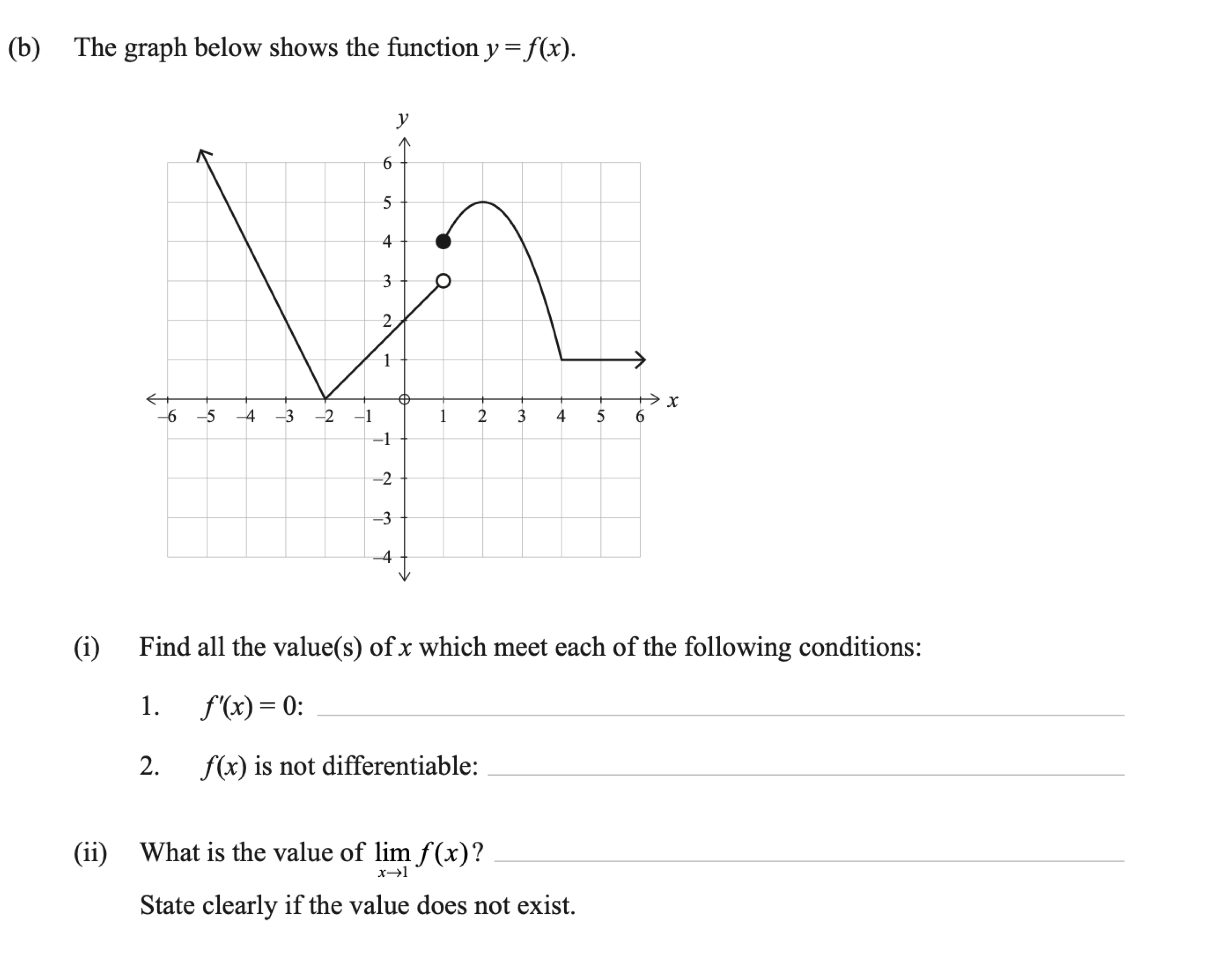

Original question scan

Hint
First walkthrough idea
Focus to try first
Read stationary points, non-differentiability, and a two-sided limit from a graph.
First worked step
Step 1
Find where f prime is zero
Look for horizontal tangents and horizontal pieces of the graph.
Show the first step’s working
Walkthrough overview
What this question practises
This 2019 walkthrough is part of AS91578 — Apply differentiation methods in solving problems.
Method: Reading derivative conditions and limits from a graph.
This is Question 3(b) from the 2019 NCEA Level 3 Differentiation paper for AS91578 — Apply differentiation methods in solving problems. Attempt the question independently, then use hints and worked steps to compare your reasoning.
Calc.nz is an independent learning resource. Compare questions, diagrams, and assessment information with the official NZQA resources for AS91578.
Page updated .
Check
Distinguish the plotted function value from its limit and gradient. Open circles, jumps and corners affect these questions in different ways.
More practice and reflection
This walkthrough helps you practise reading derivative conditions and limits from a graph. Use the hints to plan the method, then repeat the question without hints and check each step.
Try a related question: 2024 Differentiation · Q3(b). Attempt it before opening working, then return to this question later.
