NCEA Level 3 AS91578

Differentiation · 2020 · Q1(e)

2020 Paper

Back to paper

A cylinder of height \(h\) and radius \(r\) is inscribed inside a sphere of radius \(20\text{ cm}\), as shown. Find the maximum possible volume of the cylinder.

You do not need to prove that the volume you have found is a maximum.

hrSphere radius 20 cm

You must use calculus and show any derivatives that you need to find when solving this problem.

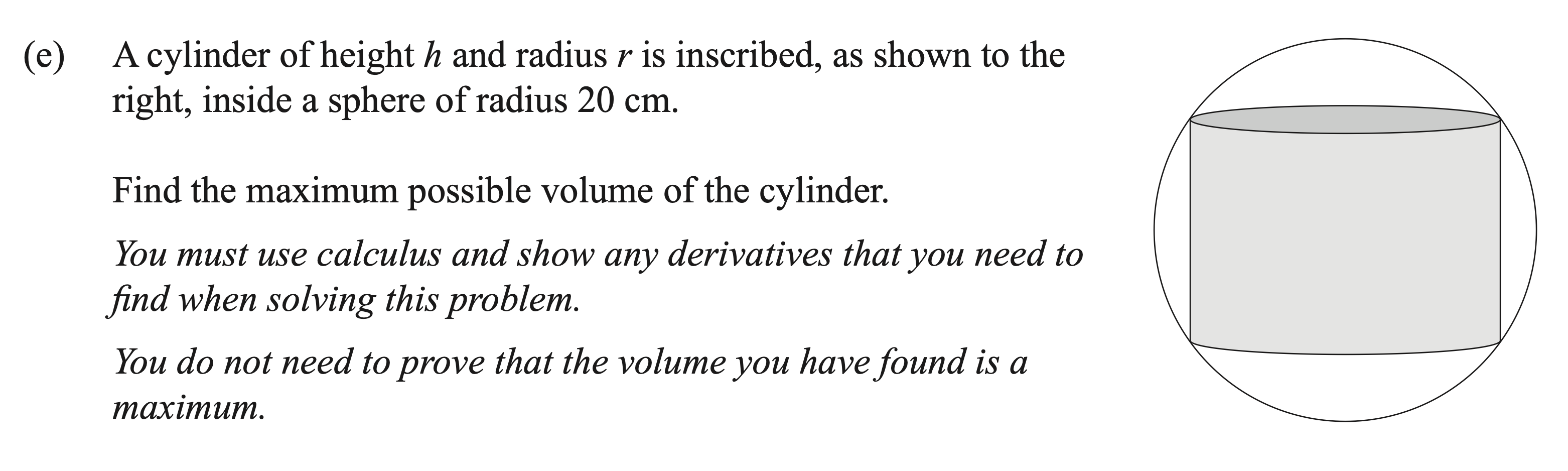

Original question scanOriginal scan of the question transcribed above
Hint

First walkthrough idea

Focus to try first

Maximising a cylinder volume inside a sphere.

First worked step

Step 1

Relate the cylinder dimensions

Relate the cylinder radius \(r\) and height \(h\) using the right triangle inside the sphere.

Show the first step’s working
\[ r^2+\left(\frac{h}{2}\right)^2=20^2 \] \[ r^2+\frac{h^2}{4}=400 \] \[ r^2=400-\frac{h^2}{4} \]

Walkthrough overview

What this question practises

This 2020 walkthrough is part of AS91578 — Apply differentiation methods in solving problems.

Method: Maximising a cylinder volume inside a sphere.

This is Question 1(e) from the 2020 NCEA Level 3 Differentiation paper for AS91578 — Apply differentiation methods in solving problems. Attempt the question independently, then use hints and worked steps to compare your reasoning.
